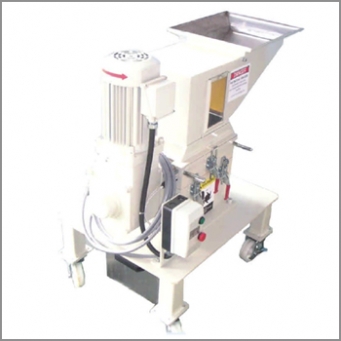

GL SERIES LOW SPEED GRANULATOR

Low Speed Granulator

Ideally suited for the injection and Blow Moulding industry.

Generally used for beside the press operations.

Motor 0.37KW - 4KW

FEATURES OF THE MACHINE

• Both the breaking blades and the cutting blades are operated simultaneuosly on one shaft, thus both the crushing and cutting action is done at the same time.
• Low dust due to the low rpm of the machine
• Very low decibels due to the low rpm of the machine
• Uniform size of the cut particle due to the superior blade design with excellent durability
• Large sprues and runners can be granulated with relatively small sized motor
• Machine is very simple and quick for colour change

GL Series Low Speed Granulator data:

Model	MotorKW	CuttingChamber	Revolving speed
GL-005	0.37	150 X 180mm	25 - 29 rpm
GL-01	0.75	290 X 240mm	25 - 29 rpm
GL-02	1.5	290 X 240mm	25 - 29 rpm
GL-03	2.25	430 X 500mm	25 - 29 rpm
GL-05	4	500 X 550mm	25 - 29 rpm



Model	Output kg/hr	Weight (kg)	Length x Width X Height (mm)
GL-005	5	100	250 X 300 X 600
GL-01	10	200	918 X 380 X 919
GL-02	10	210	918 X 380 X 919
GL-03	20	320	1070 X 500 X 1098
GL-05	40 - 60	800	1380 X 700 X 1380
