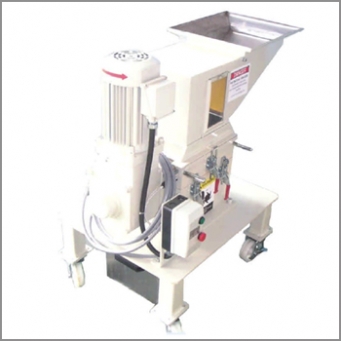

GL SERIES LOW SPEED GRANULATOR

Low Speed Granulator

Ideally suited for the injection and Blow Moulding industry.

Generally used for beside the press operations.

Motor 0.37KW - 4KW





FEATURES OF THE MACHINE

  • Both the breaking blades and the cutting blades are operated simultaneuosly on one shaft, thus both the crushing and cutting action is done at the same time.
  • Low dust due to the low rpm of the machine
  • Very low decibels due to the low rpm of the machine
  • Uniform size of the cut particle due to the superior blade design with excellent durability
  • Large sprues and runners can be granulated with relatively small sized motor
  • Machine is very simple and quick for colour change



GL Series Low Speed Granulator data:

Model

MotorKW

CuttingChamber

Revolving speed

GL-005

  0.37

150 X 180mm

25 - 29 rpm

GL-01

0.75

290 X 240mm

25 - 29 rpm

GL-02

1.5

290 X 240mm

25 - 29 rpm

GL-03

2.25

430 X 500mm

25 - 29 rpm

GL-05

4

500 X 550mm

25 - 29 rpm





Model

Output kg/hr

Weight (kg)

Length x Width X Height (mm)

GL-005

5

100

250 X 300 X 600

GL-01

10

200

918 X 380 X 919

GL-02

10

210

918 X 380 X 919

GL-03

20

320

1070 X 500 X 1098

GL-05

40 - 60

800

1380 X 700 X 1380
